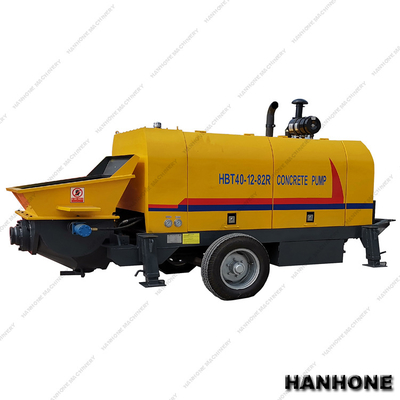

Construction works   2021 BEST PRICE IN VIETNAM CONCRETE PUMP DIESEL MACHINE PIPE HIGH PRESSURE CONCRETE PUMP

Brief Introduction - High Pressure Pipe Concrete Pump

The High Pressure Pipe Concrete Pump is composed of a pump body and a delivery pipe. It is a machine that uses pressure to continuously transport concrete along pipelines. It is mainly used in housing construction, bridge and tunnel construction. It is mainly divided into gate valve concrete pump and S valve concrete pump.

Main Technical Parameters - High Pressure Pipe Concrete Pump

Main Features - High Pressure Pipe Concrete Pump

1. Hydraulic System
1.1 Double open hydraulic loops (pumping hydraulic circuit is independent of distributing hydraulic circuit) with two pumps, makes the whole hydraulic system much simpler. The reliability of the whole system is also much higher as well as the components’ life is prolonged greatly. This is convenient for checking and removing trouble.
1.2 Large valve changing direction, makes the main pumping loop quick response, small leakage, good stability,high reliability and high resist contaminative capability.
1.3 Hydraulic system has safe relief protection,at the same time,when the system pressure is over, the main oil pump cutting device makes itself be protected reliably.
1.4 Distributing hydraulic circuit adopts constant pressure pump, which can provide strong distributing pressure and economic energy control.
1.5 Cone sealing of all pipes make the pipe joints seal reliably.
1.6 The high-low pressure switch adopting cartridge valve of reduces the trouble of dismantling and installing the oil pipe.
1.7 Adopt emulsification technology of initiative and passivity recovery integration.

2. Electric Control System
2.1 Compared with domestic product, the electric control system is simplest, the element quantity is fewest and its reliability is highest.
2.2 The wire remote equipment is convenient for operation far away.
2.3 Adopting proximity switch in hydraulic cylinder can realize changing direction with non-touch, which ensures that the direction can be changed reliably.

3. Mechanical System
3.1 The design of hopper and S valve and so on adopt I-DEAS software to calculate, the hopper and S valve have good rigidity to avoid the phenomenon of hopper distortion and S valve breakage.
3.2 The agitator have unique form, which separates the hydraulic motor from agitator bearing pedestal.At the same time, adopting large displacement motor ensures that the agitator moment is big enough.
3.3 Make sure the pumping is good and decline the phenomenon of pipe jam, the spectacles wear plate and cutting ring should be used in lower abrasion. The spectacles wear plate and cutting ring use high wear material, making the components’ life prolonged greatly.

4. Lubrication System
The hydraulic circuit will take high oil into double distributor,and then the lubricating part can obtain hydraulic oil.It ensures the lubrication of the concrete cylinder’s piston and other parts and prolongs the life of piston and other sealing.

5. Cooling System
The radiator equipment makes the working oil temperature of hydraulic system below 70℃ and makes the machine in normal status.

Main Structure - High Pressure Pipe Concrete Pump

More Productions Details - High Pressure Pipe Concrete Pump

Delivery - High Pressure Pipe Concrete Pump

Installation & Working - High Pressure Pipe Concrete Pump

Q1:How to install this High Pressure Pipe Concrete Pump?
A:We have many professional engineers, they will go to clients’ site for guiding the installation and test-running;also can teach you online how to use the product properly.

Q2:Can you sent me some spare parts freely?
A:We usually sent customers the wearing parts when shipping the product, but if need to order more spare parts,we will sent you some spare parts in one container along with machine.

Q3: How about the warranty?
A: Generally speaking, one year after machine installation.

Q4: What is the delivery time?
A: About 15-20 working days after receiving prepayment.

Q5: What is the payment terms?
A: T/T. L/C are all accept.

Q6: Which countries we have sell the machine to?
A: Our mainly sell to Indonesia, Malaysia, Philippines , Srilanka, Pakistan , Uzbekistan, Peru, Mexico, Chile, Ethiopia, Kenya, South Africa and so on.
