Startseite /Produkte/Hydraulische Flügelzellenpumpe/Equipment Manufacturers Tobee 6x4D-AH Metal and Mud Pump

Equipment Manufacturers Tobee 6x4D-AH Metal and Mud Pump

1 Set
MOQ
Equipment Manufacturers Tobee 6x4D-AH Metal and Mud Pump
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Warranty: 3 years
Customized support: OEM, ODM, OBM, Software reengineering
Model Number: AH
Application: Metal and Equipment Manufacturers, Mining industry, Washing and Cleaning, wastewater treatment, Water Distribution, Water Treatment Solutions
Horsepower: 60
Power Source: Electric
Pressure: Low Pressure
Structure: Single-stage Pump
Outlet Size: 4
Voltage: 1-60kw
Power: 380/440/525/6KV
Size: 6x4
Capacity: 162-360m3/h
Head: 12-56m
Speed: 800-1550rpm
NPSHr: 5-8m
Grundinformation
Model Number: AH
Zahlung und Versand AGB
Produkt-Beschreibung
Product Description
Specification
Model
6/4D-AH
Max. Power(kw)
60
Liner
Metal
Impeller
Metal
Capacity Q(m3/h)
162-360
Head H(m)
12-56
Speed n(rpm)
800-1550
Eff. η(%)
65
NPSH(m)
5-8
Impeller Vane No.
5
Packing & Delivery

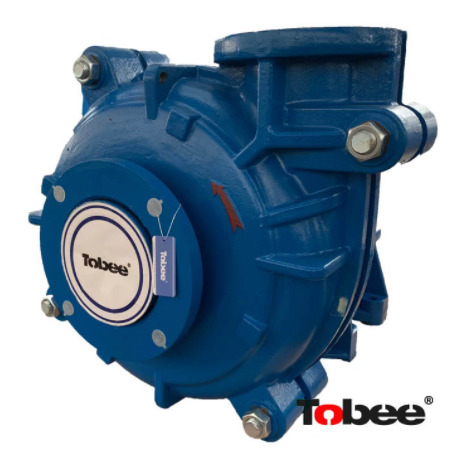

6x4D-AH Slurry Pump is a single-stage, single-suction and horizontal heavy duty centrifugal slurry pump with a cantilever design, The 6x4 slury pumps are mainly used in solids containing applications. Depending on process conditions, equipment should be suitable for highly abrasive or corrosive liquids.
Company Profile
Design Features:

√ Cylindrical structure of bearing assembly: convenient to adjust the space between impeller and front liner and can be removed
completely.
√ Interchangeable anti-abrasive wet parts made of high-chrome alloys.
√ The discharge branch can be oriented to any eight positions at the interval of 45 degrees.
√ Various drive types: DC (direct connection), V-belt drive, gear box reducer, hydraulic couplings, VFD, SCR control etc.
√ The shaft seal uses the packing seal, expeller seal and mechanical seal.

Tobee® 6/4 D AH Slurry Pumps Applications:

The 6/4 D AH Slurry Pumps are widely used in the mining, coal washing, power plant, metallurgy, petrochemical, building material,
dredging, and other industrial departments, etc.

Typical Application:

· Iron Ore Dressing Plant
· Copper Concentration Plant
· Gold Mine Concentration Plant
· Molybdenum Concentration Plant
· Potash Fertilizer Plant
· Other Mineral Processing Plants
· Alumina Industry
· Coal Washery
· Power Plant
· Sand Excavation
· Building Material Industry
· Chemical Industry
· Other industries
Contact Information:
HEBEI TOBEE PUMP CO.,LIMITED
Add: No. 266, Tianshan St, High-tech Zone, Shijiazhuang City 050000, China.
E-mail: Sales@tobeepump.com
Skype: Tobee.Pump
Mob：+86 180 3203 4573
Fax：+86 311 8722 1317
