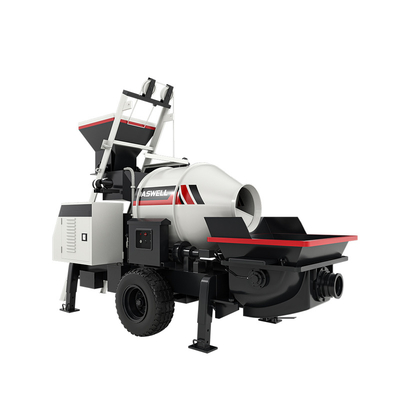

Building Material Shops Diesel Concrete Mixer And Concrete Mixers Cement Mixer Pump

 Improved wearing parts: glasses plate, cutting ring, rubber spring, proximity switch, small end assembly, small end seal, small end wear sleeve, piston, mixing seal, large end seal, solenoid valve, terminal relay safety, diesel engine filter element, etc.

Machine Features

1. Pickling and phosphating for the hydraulic oil tank and pipe to keep the hydraulic system clean.

2. Special cleaning tank to clean the hydraulic hose and valves.

3. High quality hydraulic oil; 8 hours test run with water.

4. Equipped accumulator along with current compensator which has compensation action when the voltage and current is not stable.

What height and distance can the it pump?
It can hit 200m horizontally and 50m vertically.

Can the pumping and mixing parts be used separately?
Can. If the amount of concrete mixed by the mixer is not enough, it can be pumped with a mixer truck. Or add an additional concrete mixer.

What is the diameter of the delivery pipe?
Pipe diameter is 125mm (5 inch.)

How many containers does a concrete mixing pump need?
1 mixing drag pump plus 100m pipeline, install a 40 high cabinet.

What brand are the main components?

The diesel engine is Weichai, and the main oil pump is Kawasaki, both of which are internationally renowned brands. Cummins diesel engine can also be used according to customer requirements.
